Unterkategorie: Kühler und Zubehör
Produktart: Ladeluftkühler
Dieses Upgrade Kit für Ihre Mustang mit Vortech Kompressor ( ohne Ladeluftkühler) hebt die Kapazität Ihres Vortech Kompressors auf 900 PS an. Durch die Kühlung der Ladeluft kann ein höherer Ladedruck gefahren werden.

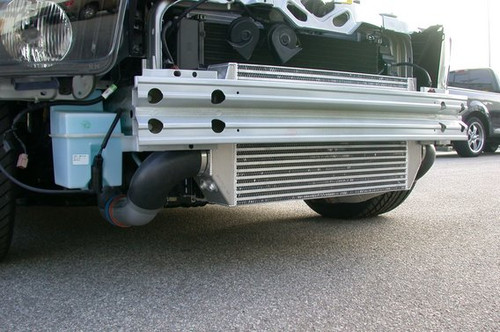

Air to air charge cooler system upgrade for vehicles equipped with the standard (non-cooled) Vortech supercharging system.
Custom ECM calibration will be required.
Included components
Welded air-air charge cooler. 24 x 13 x 3.5 cooler core is capable of supporting up to 900 HP.
Cast aluminum throttle body inlet duct
Mandrel bent 3 aluminum charge tubes for high flow and minimal weight
Silicone sleeves, stainless steel clamps, twin Bosch compressor bypass valves
3.47 6-rib supercharger pulley
Supercharger pulley retainer assembly
Engine coolant reservoir relocation assembly
Stainless steel radiator pipe replacement
Diablosport MAF interface adapter for extended meter range
Important
Custom ECM programming will be required. Depending on modification level of vehicle and pulley size selected, fuel system upgrades may also be required.
Pulley diameter changes: Careful size selection is mandatory for proper engine and supercharger life. Contact the Vortech tech line for assistance with impeller speed calculations if necessary.
A Vortech Maxflow Race or Mondo compressor bypass valve is required for applications producing more than 11-12 psig.
8N301-398/-408: only the two charge tubes that are visible from above are polished. Core and other tubes are not polished.
